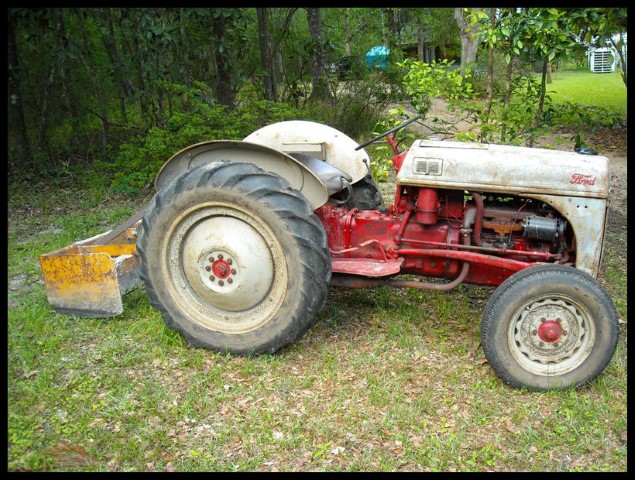

My First - a 1950 Front Mount

This is an early-1950 model that has FAR more in common with the 1949 model than later 1950 models.
So while the tractor IS a 1950 model as serial number 247088 indicates, it's functionally a 1949 Model.
It had been sitting in a barn for at least 20 years and problably a lot longer. The engine was seized but the person who parked it had the forethought to drain the fuel completely and remove the battery.
I was able to free the engine up and not only did it free up but it has good compression, doesn't knock or smoke.

Click for more info

Number 2 - A 1952 Side Mount

The later 1950-52  models have: a newly cast engine block with a side mounted distributor along with several other improvements. This one was not firing when I got it. The wiring harness was trashed and I didn't bother troubleshooting the problem. Installed new 12v coil, points, condenser and wiring harness then flushed the tank/carb with fresh gas...it fired right up.

Click for more info

pic2

pic3

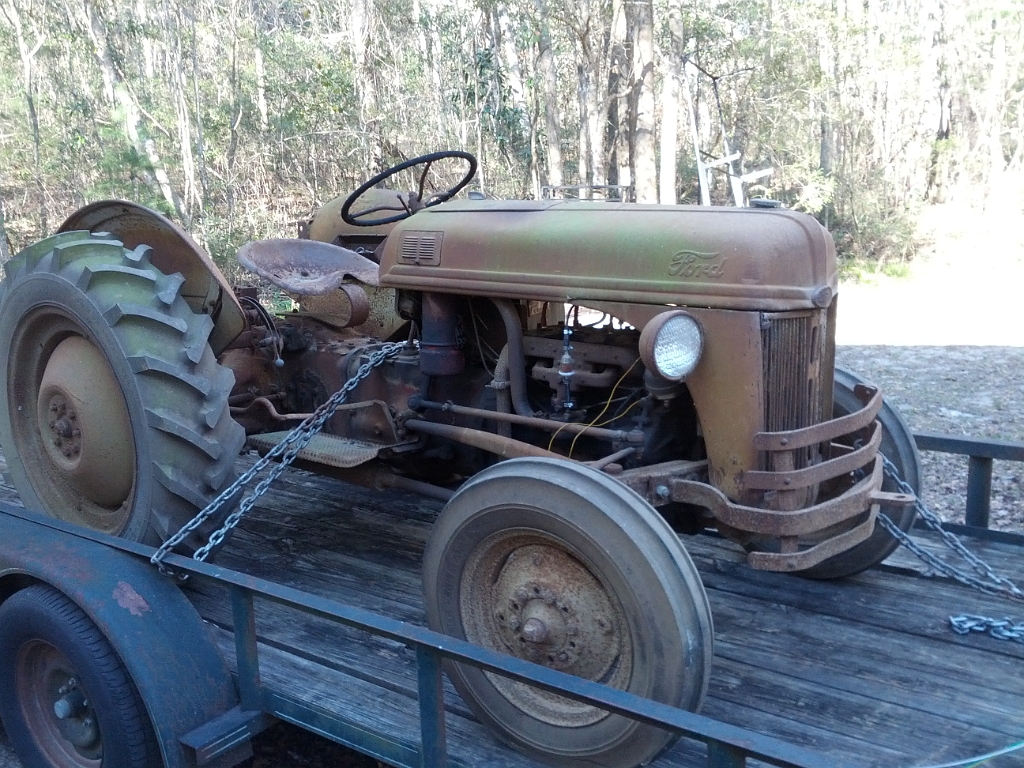

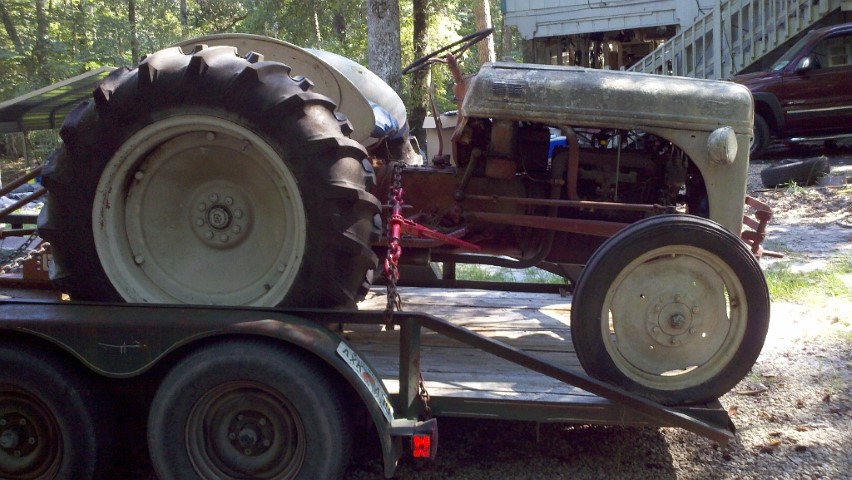

Number 3 - Another 1952 Side Mount

Found this one in Wigham Georgia. It's nearly complete - including an original riveted front bumper but has a 12v alternator conversion kit installed. Turned over but didn't fire. Points, condensor and rotor got it running but it kept stalling after a few seconds. Once I removed the extra fuel-filter that some well meaning previous owner installed it runs perfectly.

Click for more info



There were changes made to the tractor throughout production but the the distributor system used seperates the two major versions of Ford 8N tractors. The Side Mount Block has slightly higher compression and produces a few extra HP.

Front Mount

fm

Side Mount

sm



Specifications for Ford 8N tractors

30 H.P., "Flat-Head" 4 cylinder engine
4-speed transmission
2400 lbs Dry
540 RPM PTO System
Ferguson System 3 Point Hitch
Position Control and Automatic draft control
Produced from 1947-1952 at Dearborn, Michigan




Manuals and Resources
Some pics from the time when Ford 8N tractors were new
Old Version of the FO-4 Service Manual

This training manual was distributed to offical Ford Tractor Dealers.

8NDealerServiceTrainingManual.pdf

Master Parts Manual for 1939-1953 Ford Tractors.

Here is an online servicemanual for the 9N, 2N and 8N

Adjustment Manual for Hydrolics. NAAHydoAdjustment.pdf

More Help with Hydraulics here.
Click here for some history of the "N" Ford Tractors.

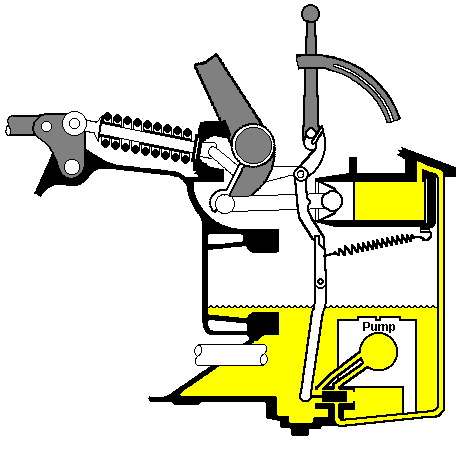

Functional Representation of the N hydraulic system

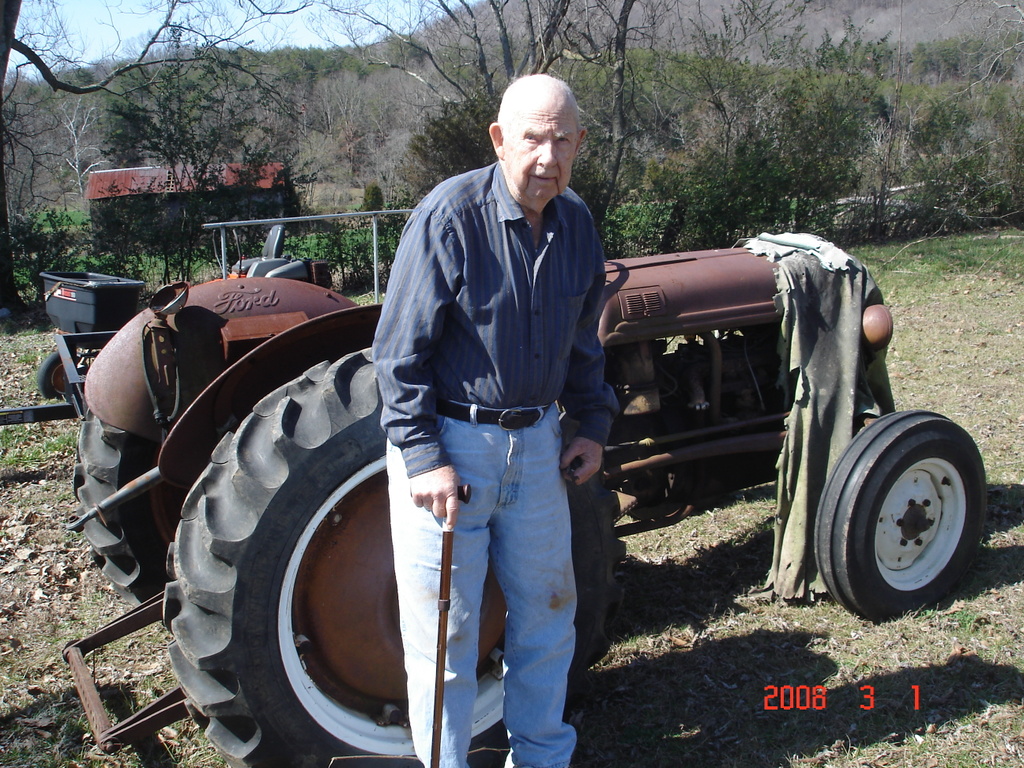

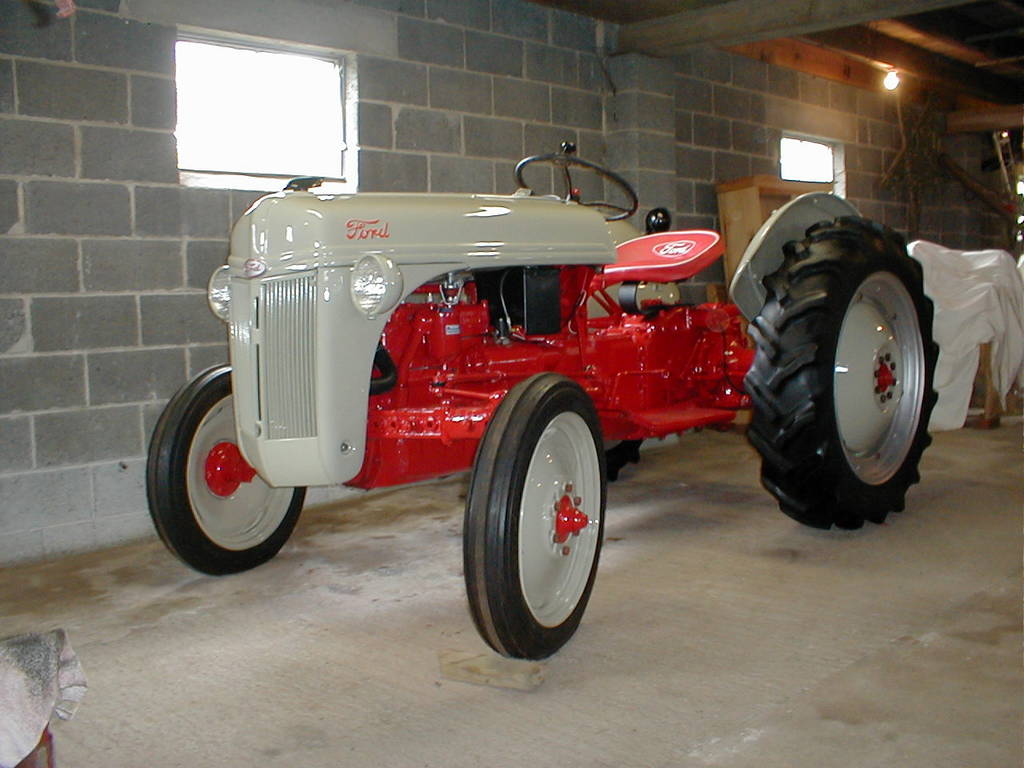

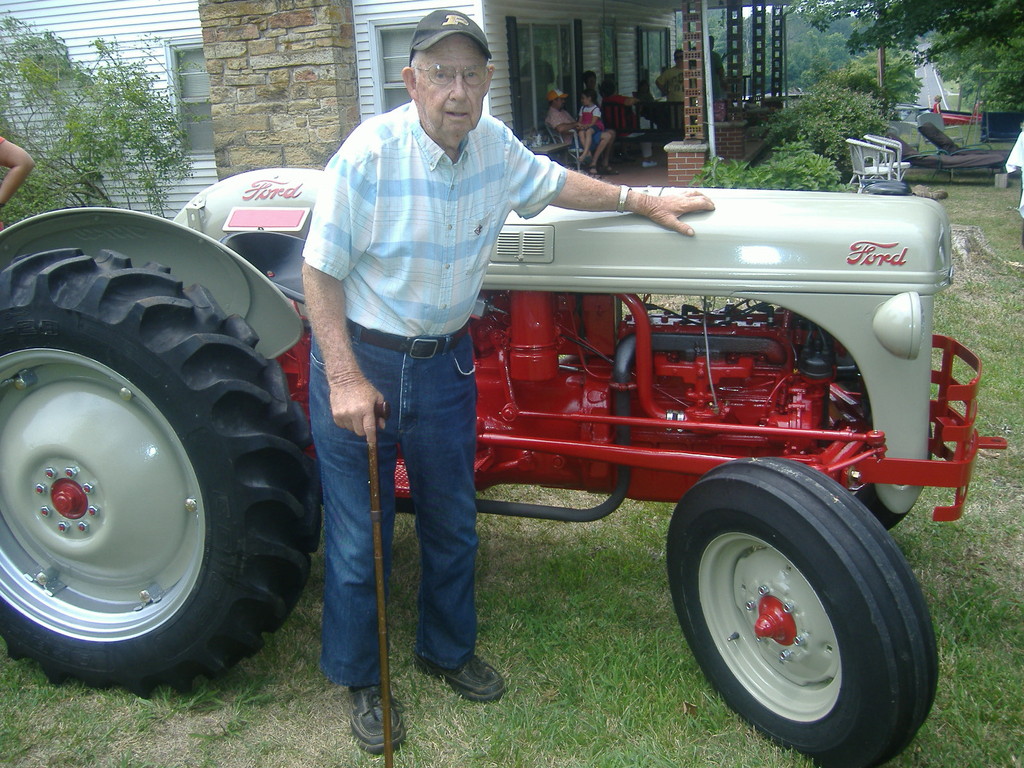

Cool before and after pics of an 8N tractor.

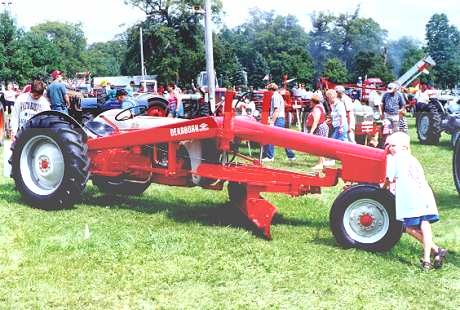

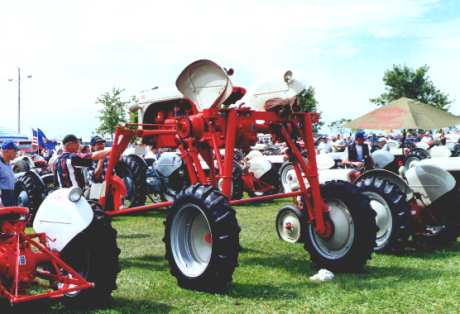

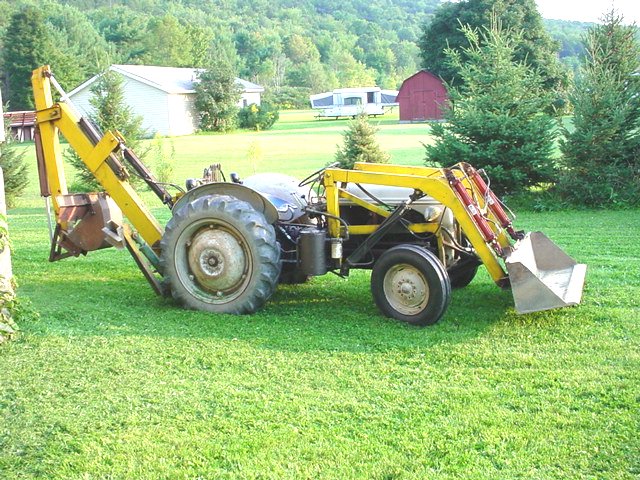

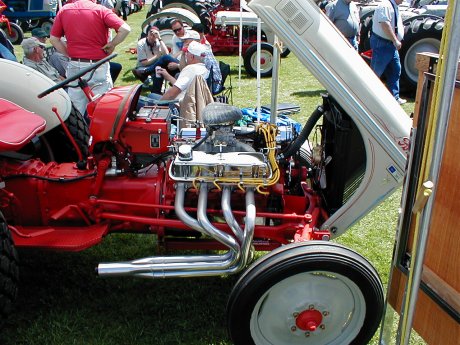

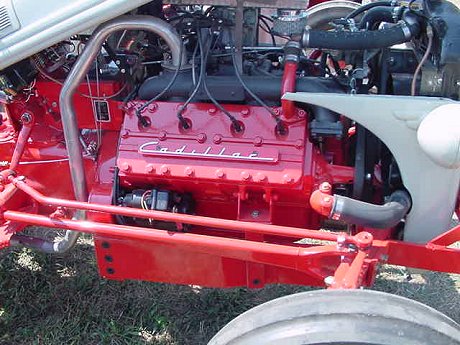

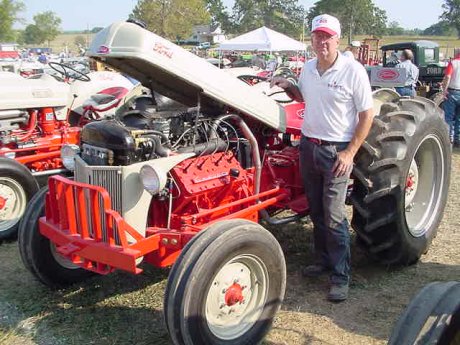

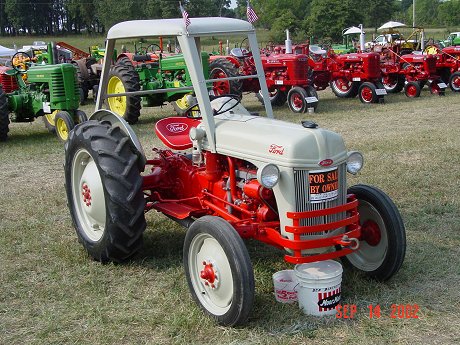

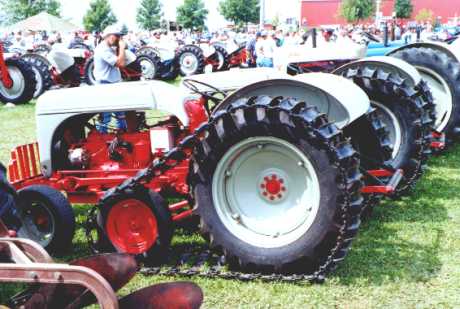

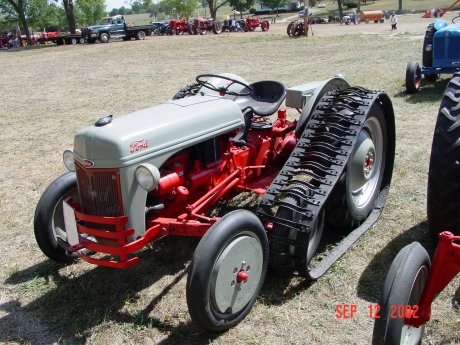

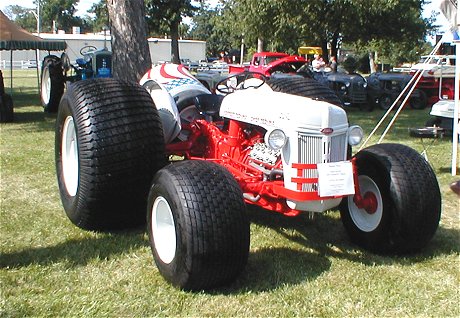

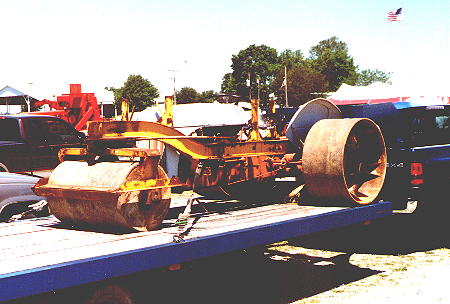

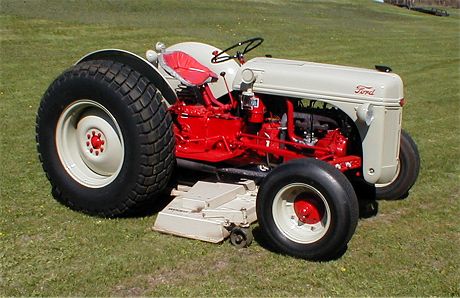

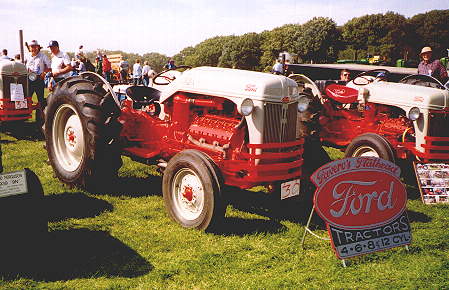

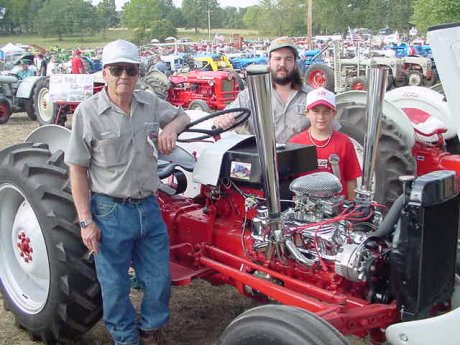

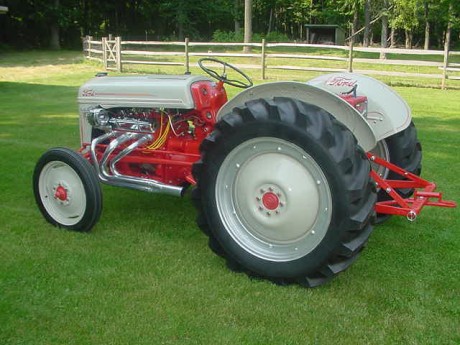

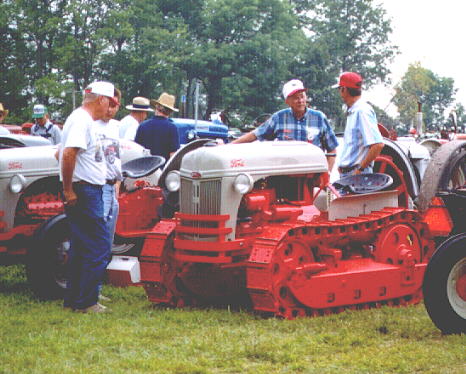

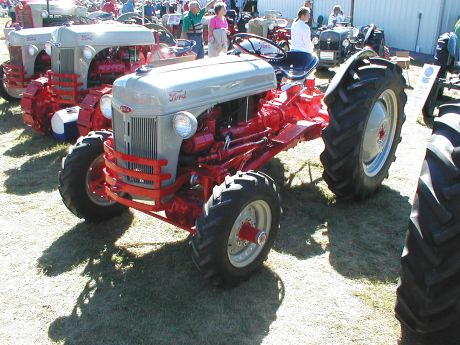

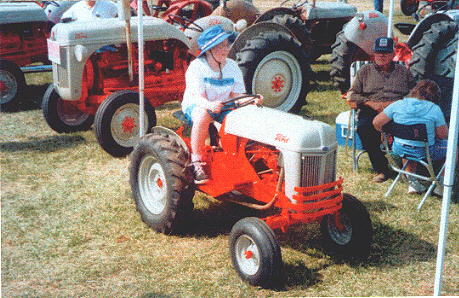

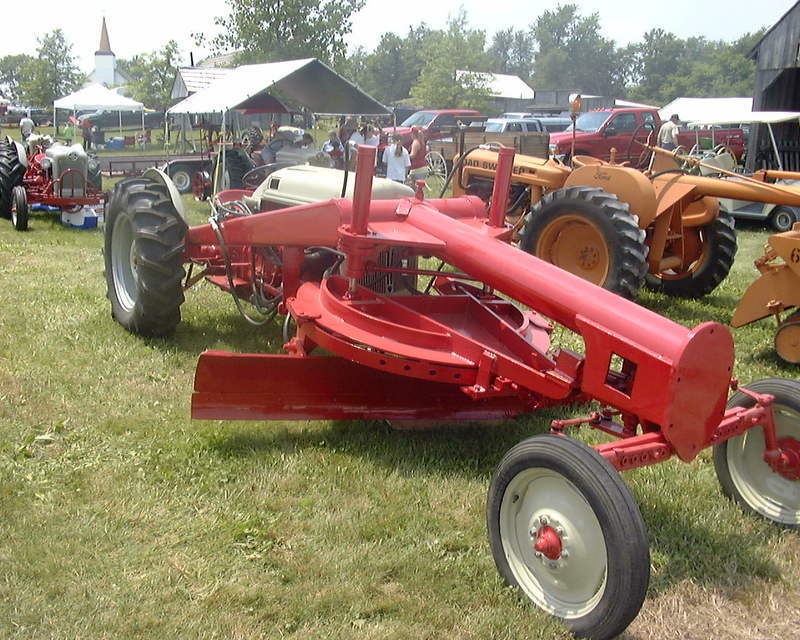

Here are some interesting 8N'S
